Modular die-cast LED industrial high bay in single, double and triple bodies — delivering 15,000 to 90,000 lumens (100–600W) at up to 146 lm/W, with 40°–140° optics, IP65 wet-location rating and DALI/0-10V/PWM dimming.
| Wattage | 100–600 W |
|---|---|
| Luminous flux | 15000–90000 lm |
| Efficacy | 150 lm/W |
| Color temperature (CCT) | 3000K / 3500K / 4000K / 5000K / 6500K |
| CRI | ≥80 |
| Beam angle | 40° / 60° / 90° / 140° |
| IP rating | IP65 |
| Mounting | Surface, Wall, Suspended (bracket ceiling mount), Suspended (aircraft cable, 10 ft) |
| Dimensions | Single 308 mm (12") × 375 mm (15") × 133 mm (5"), 8.6 kg; Double 594 mm (23"), 17.2 kg; Triple 880 mm (35"), 25.8 kg |
| Distribution | Direct |
| Finishes | White (RAL 9016), Dark Grey, Custom color |
| Dimming | 0-10V (5%), DALI, PWM |
| Rated environments | Wet location (IP65), -40°C to +40°C |
| Rated lifetime | 100,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

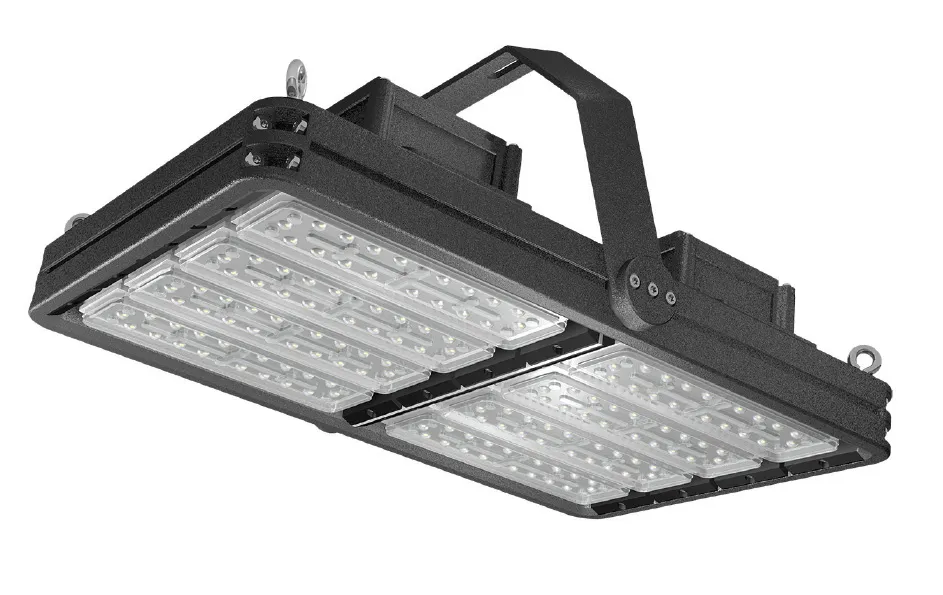

M-Series is ON LIGHT's modular LED industrial high bay, a die-cast aluminium luminaire built up from single (M9002 15,000 lm / 100W, M9004 30,000 lm / 200W), double (M9006 45,000 lm / 300W, M9008 60,000 lm / 400W) and triple (M9010 75,000 lm / 500W, M9012 90,000 lm / 600W) light-engine bodies, with custom lumen packages available. Beam spreads include Narrow 40°, Middle 60°, High 90° and Wide 140°, plus a dedicated Billboard-application optic, in white CCTs of 3000K, 3500K, 4000K, 5000K and 6500K at CRI 80+ (3-step MacAdam) and efficacy up to 146 lm/W. It runs on 120V, 277V or 347V with 0-10V (5%), DALI or PWM dimming, a Class 1 driver, and optional 4/6/10 kV surge protection. The die-cast housing comes in white (RAL 9016) or dark grey (other colors available), carries an IP65 rating for wet locations, IK08 impact resistance and a -40°C to +40°C operating range, with L80/B10 rated up to 78,000 hours and L70/B50 up to 100,000 hours. Mounting options are surface, wall, suspended bracket-ceiling mount, or a 10 ft aircraft-cable mount. The single/double/triple bodies measure 308/594/880 mm (12/23/35") long at 375 mm (15") wide. Certified to US and Canadian safety standards and backed by a 5-year comprehensive system warranty, M-Series is assembled in Beloeil, Canada, and is designed to be refurbished ("Back to Life") with newer LED and driver generations.
