Integral-driver cove linear (1-3/4" x 1-1/2") with adjustable brackets for ambient, wall-wash, and accent lighting, publishing 350-1000 lm/ft indirect in 6-12 ft lengths at 2700-4000K.
| Wattage | 3.15–9 W/ft |
|---|---|
| Luminous flux | 350–1000 lm/ft |
| Efficacy | 111 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥80 |
| Mounting | Surface (cove, adjustable brackets) |
| Dimensions | 1-3/4" W x 1-1/2" H profile; 6/8/12 ft lengths + custom |
| Distribution | Indirect |
| Finishes | White, Custom (consult factory) |
| Dimming | Non-dim or 0-10V 1% dimming (120/277V); Lutron EcoSystem 1%; Lutron Athena wireless node option; custom controls on request; tunable white 2700-5000K option; universal 110-277 VAC |
| Rated environments | Dry, Damp location |
| Rated lifetime | 50,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

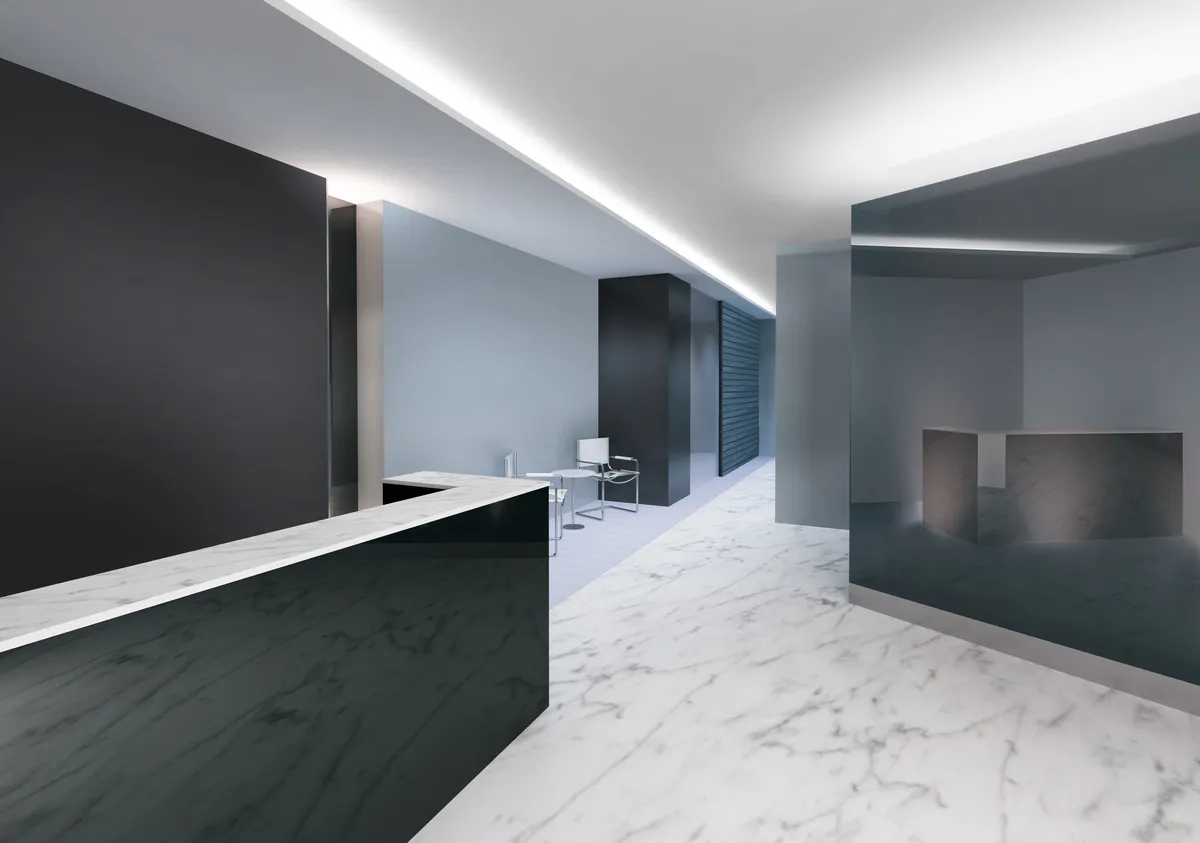

Sophia is Picasso Lighting's integral-driver cove profile for ambient lighting, wall washing, and accent lighting recessed in a cove facing up or down, adding a modern look to industrial, commercial, and residential spaces. The extruded-aluminum housing is one and three-quarter inches wide by one and a half inches tall and carries the driver inside, so there is no low-voltage wiring and no calculating drivers against LED board lengths — 120 or 277 V feeds the side or back through a supplied 1/2" knockout, with quick connects for easy contractor installation and adjustable brackets supplied for field aiming. The LED performance table publishes 350, 500, 750, and 1000 lm/ft indirect packages at 3.15-9 W/ft (110-111 lm/W at 3000K), with the LED strips mounted in the channel behind an integral clear acrylic dust cover and custom lumen outputs available. Standard CCTs run 2700K to 4000K in 80+ or 90+ CRI (3 SDCM), with tunable white 2700-5000K available. Lengths are 6, 8, and 12 ft plus custom; drivers are non-dim or 0-10V 1% dimming at 120/277 V, with Lutron EcoSystem 1% and custom controls optional and Lutron Athena wireless nodes, an emergency battery driver, and inverter wiring as options. Standard finish is powder-coated white. IBEW manufactured and assembled in Moonachie, NJ, UL listed for dry and damp locations, rated 50,000-hour LED life, and covered by a limited five-year warranty.
Pick from Sophia's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
