Fixed low-profile indirect LED cove light for concealed cove applications, delivering 500 to 1200 lumens per foot at up to 145 LPW, 2700K-4000K, 80/90 CRI.
| Luminous flux | 500–1200 lm/ft |
|---|---|
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥80 |
| Mounting | Cove (recessed / concealed) |
| Dimensions | Low-profile one-piece steel housing 4.12" wide x 2.02" tall; continuous runs specified in 1' increments from a 2' minimum; 4' unit 7 lbs |
| Distribution | Indirect |
| Dimming | 0-10V analog to 10% (LD1) or 1% (L11) standard on 120/277V UNV; Lutron Hi-Lume EcoSystem 1% (LH1) and DALI 1% (D11) options |
| Rated environments | Dry, Damp location |
| Rated lifetime | 60,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

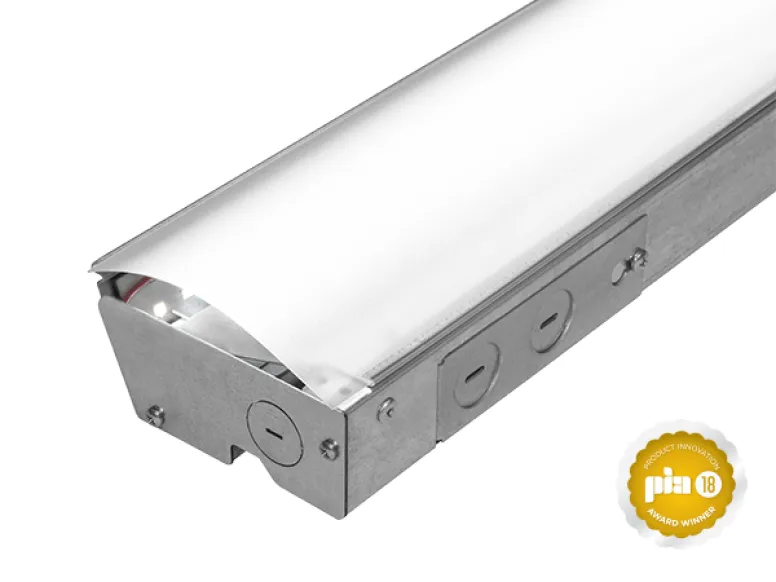

Covert Lite is Focal Point's fixed (non-adjustable) LED cove light, a low-profile lens-indirect luminaire designed to hide inside architectural coves and wash ceilings and walls with pleasing, even illumination that highlights architectural details. It is the lower-output, non-aimable companion to the adjustable Covert. A proprietary linear LED module behind a frosted acrylic lens delivers 500, 750, 1000, or 1200 delivered lumens per foot — 2000, 3000, 4000, and 4800 lumens at a 4-foot length, drawing 13.8 to 34.3 watts and reaching up to 145 LPW — offered at 2700K, 3000K, 3500K, and 4000K in both 80+ and 90+ CRI, held to 3 SDCM. The compact one-piece 20-gauge steel housing with galvanized end caps measures 4.12" wide and 2.02" tall, and continuous runs are specified in 1' increments from a 2' minimum, pre-wired with factory-installed branch-circuit wiring and over-molded quick connects (up to 100 ft of thru-wire per feed for 500-1000 lm/ft, 72 ft for 1200 lm/ft). The reflector is fabricated of low-iridescent, semi-specular premium-grade aluminum. The standard 120/277V UNV constant-current driver includes 0-10V analog dimming with a power factor greater than .9, with 0-10V 10% (LD1) / 1% (L11), Lutron Hi-Lume EcoSystem 1% (LH1), and DALI 1% (D11) control options, plus an emergency-circuit (EC) factory option. Covert Lite is UL and cUL listed for indoor dry or damp locations, reports L70 and L90 beyond 60,000 hours, and carries a five-year limited warranty.
Pick from Covert Lite's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
