Small-profile adjustable LED cove luminaire for concealed indirect cove and perimeter grazing, delivering 500 to 1250 lumens per foot at 2700K-4000K, 80/90 CRI.
| Luminous flux | 500–1250 lm/ft |
|---|---|
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥80 |
| Mounting | Cove (recessed / concealed) |
| Dimensions | Small-profile housing up to 4.0" tall; horizontal base fits coves 4.3" min width x 2.0" min depth, vertical base 2.81" min width x 3.25" min depth; continuous runs specified in 1' increments |
| Distribution | Indirect |
| Dimming | 0-10V analog to 10% (LD1) or 1% (L11) standard on 120-277V UNV; Lutron Hi-Lume EcoSystem 1% (LH1) option (1250 lm/ft available with LD1 & L11 only) |
| Rated environments | Dry, Damp location |
| Rated lifetime | 50,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

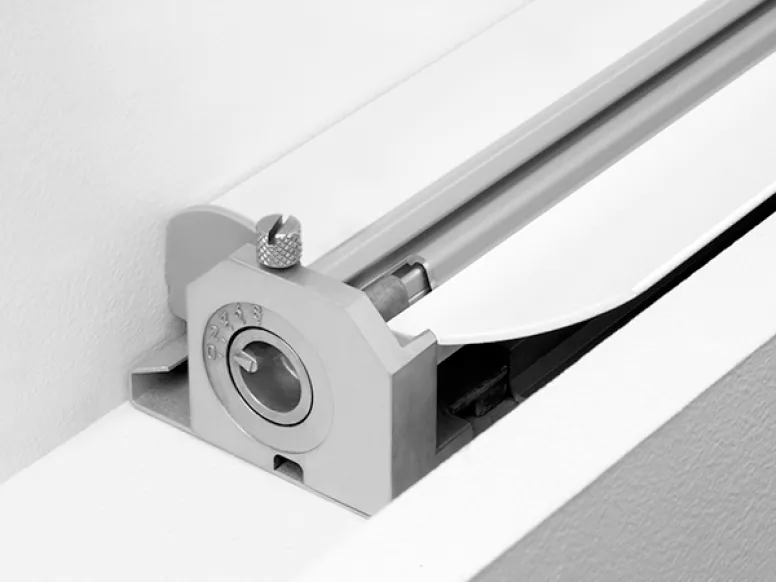

Covert is Focal Point's adjustable LED cove light, a small-profile indirect luminaire engineered to hide inside architectural coves and wash walls and ceilings with pleasing, shadow-free illumination. Its Light Bar and Light Scoop both adjust and lock, letting the peak candela be aimed and the overall distribution shaped to suit any cove geometry — including sloped ceilings, where the light scoop is always specified. Three profiles cover the range of installations: a horizontal base (HN), a horizontal base with adjustable light scoop (HS), and a vertical base (VN), fitting coves as narrow as 4.3" wide and 2.0" deep (horizontal) or 2.81" wide and 3.25" deep (vertical) within a compact housing up to 4.0" tall. A proprietary linear LED module behind a 0.07" extruded acrylic lens delivers 500, 750, 1000, or 1250 delivered lumens per foot (1250 lm/ft with LD1 and L11 only), offered at 2700K, 3000K, 3500K, and 4000K in both 80+ and 90+ CRI, held to 3 SDCM. Continuous runs are specified in 1' increments with a quick-connect thru-wire harness, feeding from the end via up to 67" of flex whip. The standard 120-277V UNV constant-current driver includes 0-10V analog dimming to 10% (LD1) or 1% (L11), with a Lutron Hi-Lume EcoSystem 1% (LH1) option. Covert is UL and cUL listed for indoor dry or damp locations, reports L70 beyond 50,000 hours, and carries a five-year limited warranty. A fixed (non-adjustable) lower-output companion, Covert Lite, rounds out the family for shallower coves that don't require aimable optics.
Pick from Covert's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
