Linear wall-grazing luminaire with a 10°×100° silicone graze optic — flush, regressed, or louvered — 250 to 1200 lm/ft, 80/90 CRI, tunable-white and PoE options, IC-rated and damp-location listed.
| Luminous flux | 250–1200 lm/ft |
|---|---|
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥90 |
| Mounting | Pendant (cable / stem), Surface, Perimeter, Patterns & forms |
| Dimensions | 1¾″ W × 2 1⁄16″ H profile; cut to length in 6″ increments & continuous runs with aligner joiners |
| Distribution | Grazing / wall-graze (10°×100° optic) |
| Finishes | White, Black, Aluminum paint, Custom |
| Dimming | 0–10V 1% standard; Lutron Hi-lume 1% EcoSystem, bi-level, DALI, DMX, Xitanium SR; Axis tunable-white (2700–6500K) and PoE drivers; 120/277/347/UNV/DC |
| Rated environments | Dry, Damp location, 0–40 °C (32–104 °F), IC-rated |
| Rated lifetime | 50,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

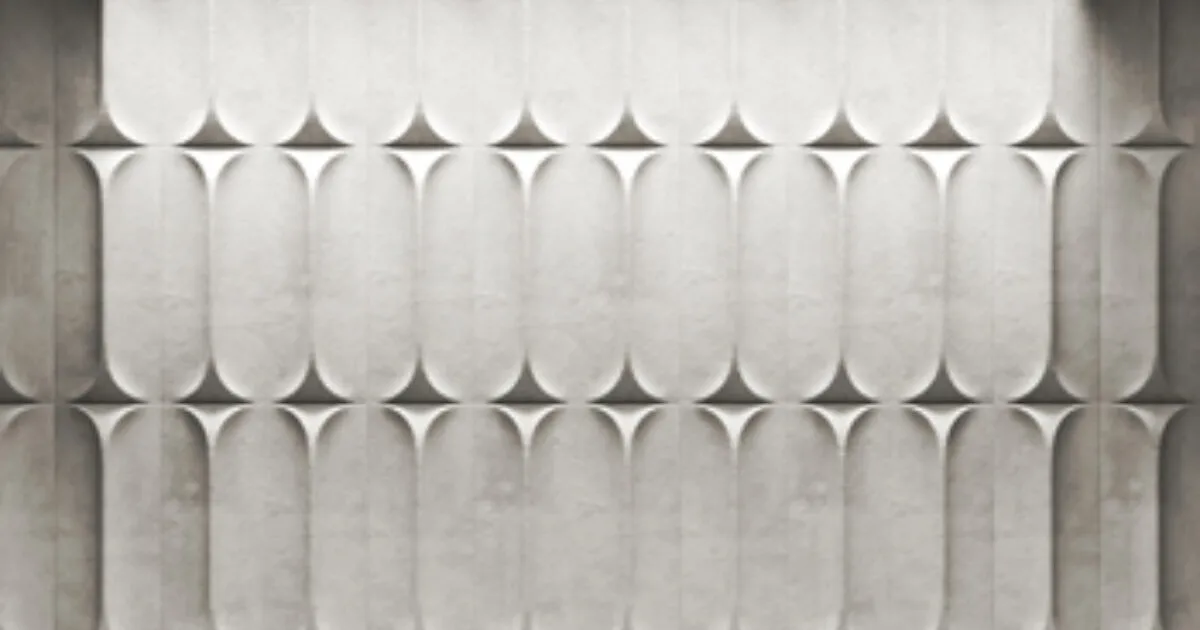

Graze Perfekt is Axis Lighting's linear wall-grazing luminaire, using a modular injection-molded linear silicone optic with a tight 10°×100° distribution to rake even light down textured walls and facades. It ships flush, regressed 2 inches, or regressed with louver for glare control, delivering 300 to 1200 lm/ft without a louver or 250 to 650 lm/ft louvered, at 80 or 90 CRI across 2700/3000/3500/4000K plus Axis tunable white (2700–5000K and 2700–6500K). The extruded-aluminum housing cuts to length in 6-inch increments and joins into long continuous runs through optic-matched aligner joiners. Dimming is 0–10V 1% standard, with Lutron Hi-lume 1% EcoSystem, bi-level, DALI, DMX, Xitanium SR, tunable-white, and PoE driver options at 120/277/347/UNV/DC. Rated L85 at 50,000 hours, Graze Perfekt is cULus listed (UL/CSA), IC-rated for insulated ceilings, CCEC Chicago-plenum compliant, and damp-location rated for indoor use at 0–40 °C, offered in pendant, surface, perimeter, and pattern mountings with a limited 5-year warranty.
Pick from Graze Perfekt's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
